Hand-Held Laser

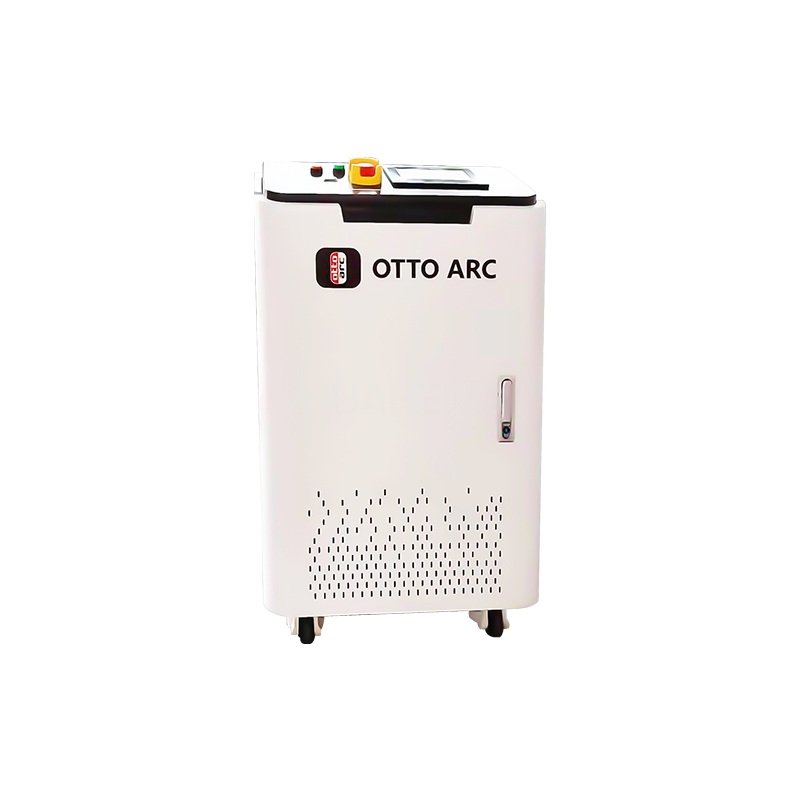

1000/1500W Hand-Held Laser Welding Machine

  • Hotline： +86 (0)512-57328118

  • Mailbox：sales@huahengweld.com

    • Description


    Technical parameter
    Equipment modelJZ-HW-1000W
    		JZ-HW-1500W
    Laser generator1000W1500W
    Laser wavelength1070nm1070nm

    Fiber core diamete

    		20μm50μm

    Fiber length

    		Standard configuration 10mStandard configuration 10m
    Operation modeContinuous/ModulationContinuous/Modulation
    Galvanometer width

    0.5-6mm

    		0.5-6mm
    Galvanometer scanning speed≤8000mm/s≤8000mm/s

    Welding speed

    		0-120mm/s0-120mm/s
    Refrigeration deviceIntelligent dual-temperature water chillerIntelligent dual-temperature water chiller
    Operating ambient temperature range15-35°C15-35°C

    Humidity range of working environment

    		<70% without condensation<70% without condensation
    Thickness of welding material≤3mm≤5mm

    Welding gap requirements

    		≤0.5mm≤0.5mm
    Working voltage220V±10%380V±10%

    Overall power

    		≤5KW≤6KW
    Product size1350mm*600mm*1300mm1350mm*600mm*1300mm
